Mackie SRM450 Diaphragm 1701 Tweeter Horn Driver MR DJ Part

Replacement Fit for Mackie SRM450 SRM-450 Diaphragm 1701 Tweeter Horn Driver MR DJ Part

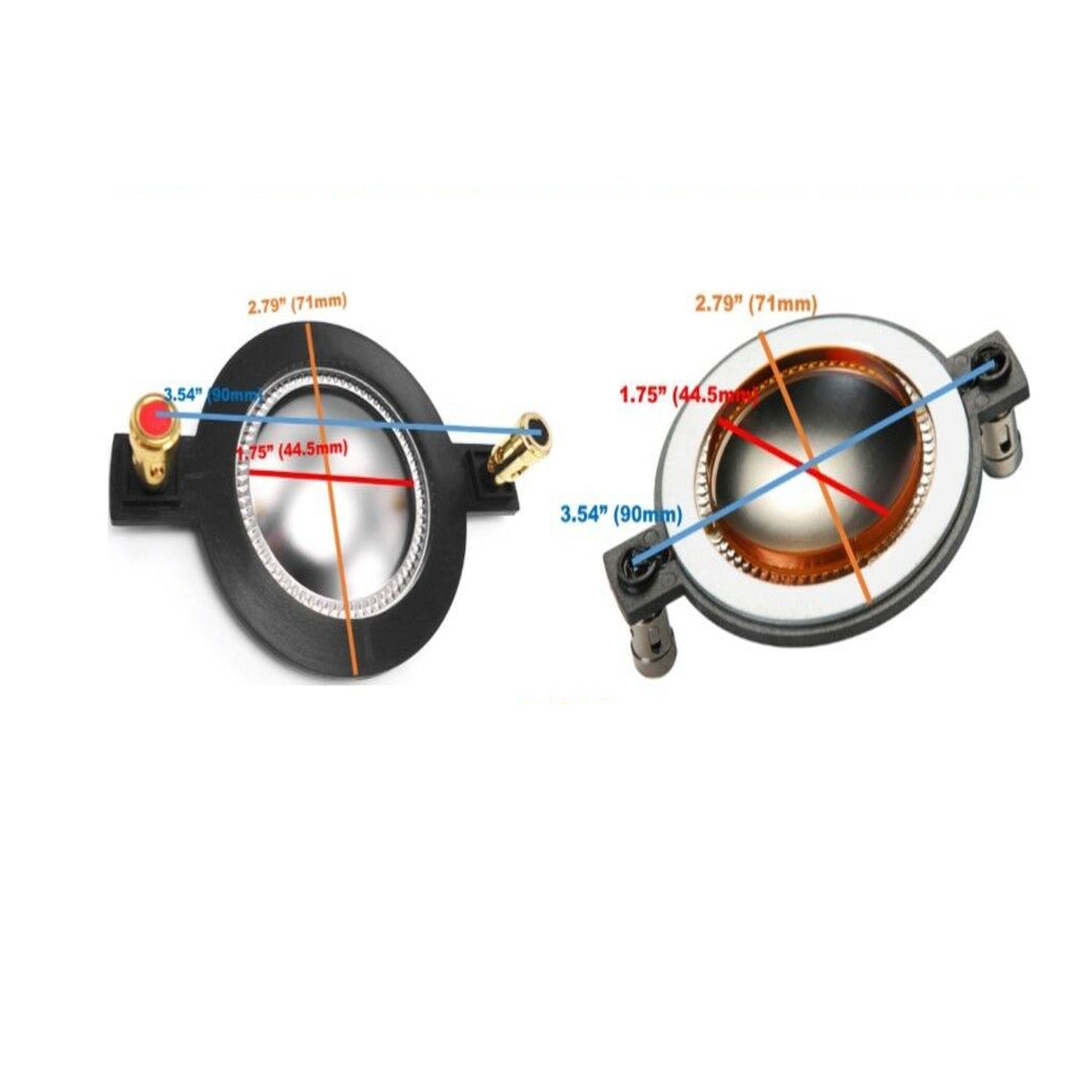

44.5mm ( 1.75" ) titanium diaphragm Compression Speaker horn Driver Tweeter voice coil Round copper wire Speaker Parts

General Features:

• Coil diameter: 44.5mm, 1.75"
• Column center distance: 90mm, 3.54"
• Aluminum outer diameter: 71mm, 2.79"
• Dome height: 6.8mm, 0.267"
• Sound film material: titanium film
• Coil material: round copper wire
• Nominal Impedance: 8 Ohms
• Power (RMS): 100W
• Power (MAX): 800W
• Sensitivity(1W/1m): 110dB
• Frequency Range: 600Hz - 20KHz
• Diaphragm Material: Titanium
• Easy to install, self-centering

Mackie: 1701-8, 17018, CD10-1701-8, CD10-1701, DC10-1701, DC10/1701-8, DC-10-1701, CD10/1701-8, SRM450, SRM-450, SRM 450, C300Z, C-300Z, C 300Z, SA-1521, SA1521, SA 1521, SR-1522, SR1522, SR 1522, 0025666, 0008093, 77005-014, S-215, S215 S 215, S-225, S225, S 225, and many more!

Note: It does NOT fit older style Mackie SRM450 with the M44Ti horn driver!
