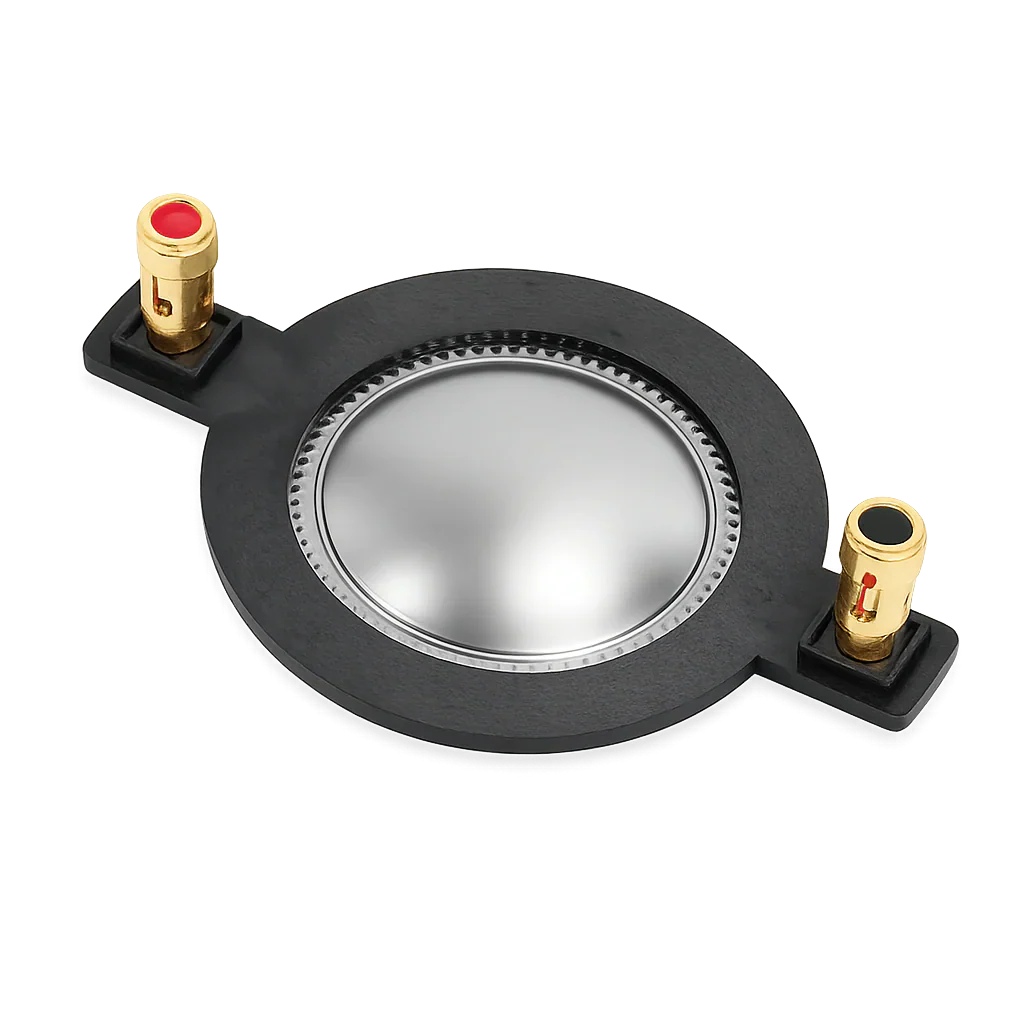

Compatiable Fit Mackie Speaker SRM450 1701-8 DC10 D-SRM450 Horn Diaphragm

MR DJ USA Replacement Titanium Diaphragm Compatible Fit for Mackie SRM450 / 1701 Compression Driver Tweeter Horn

High-performance replacement 44.5mm (1.75") titanium diaphragms designed for Mackie 1701 compression drivers used in select SRM450, C300Z, SA1521, SR1522, and compatible professional loudspeakers.

Key Features:

🔊 DIRECT REPLACEMENT FOR MACKIE 1701 DRIVERS - Designed to replace worn or damaged diaphragms in compatible Mackie 1701 compression driver horn tweeters.

⚡ 44.5MM (1.75") TITANIUM DIAPHRAGM - Premium titanium diaphragm delivers excellent high-frequency response, smooth detail, and high-output performance.

🛠 SELF-CENTERING DESIGN - Precision-manufactured diaphragm assembly allows for quick installation and accurate alignment without complicated adjustments.

🎤 HIGH POWER HANDLING - Rated for 100 Watts RMS and up to 800 Watts Peak with excellent sensitivity for professional PA speaker systems.

💪 PROFESSIONAL REPLACEMENT COMPONENT - Ideal for repairing powered speakers, passive PA cabinets, stage monitors, and professional sound reinforcement systems.

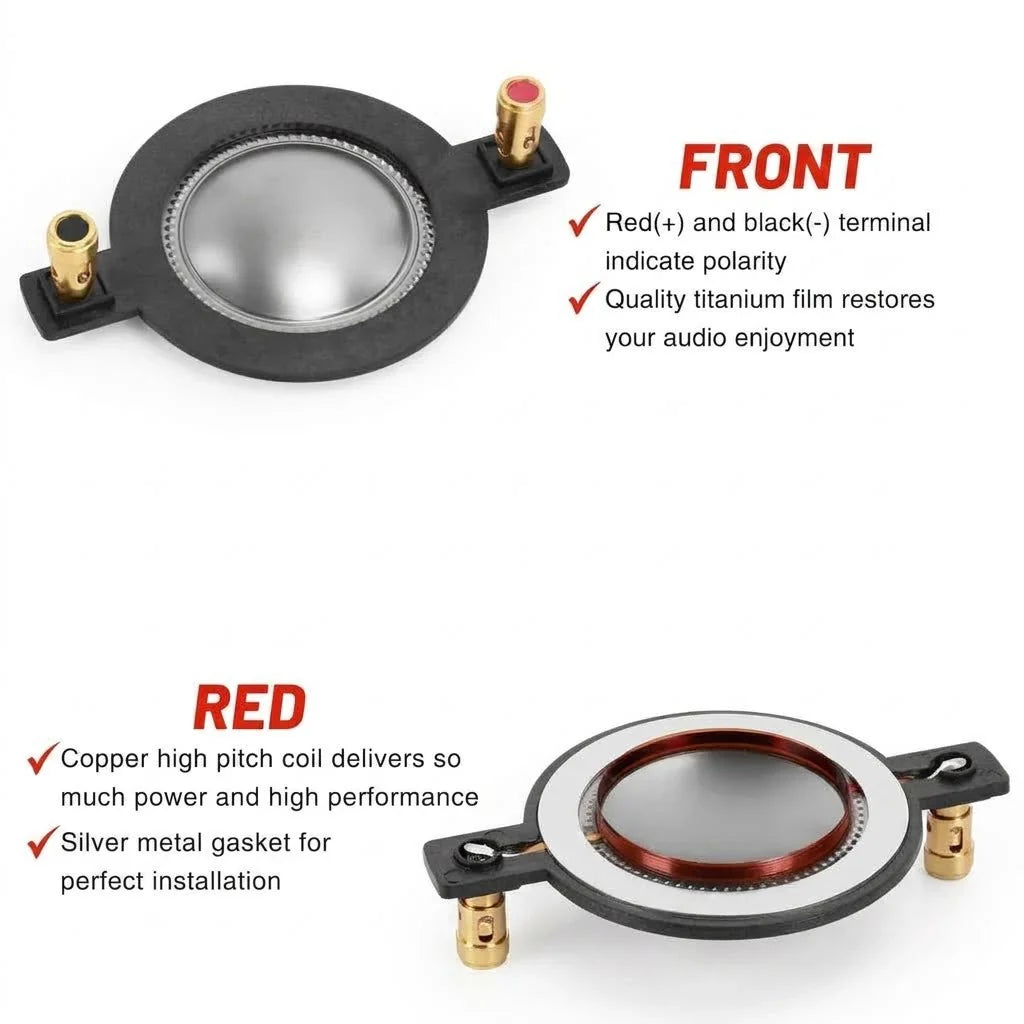

Restore the performance of your professional loudspeakers with this replacement titanium diaphragm kit designed for Mackie 1701 compression drivers. Featuring a precision-built 44.5mm (1.75") titanium diaphragm and round copper voice coil, these replacement diaphragms deliver outstanding clarity, high efficiency, and reliable performance for professional audio applications.

Designed as a direct replacement for many Mackie speaker models using the 1701 compression driver, these diaphragms offer excellent high-frequency reproduction, smooth response, and easy installation with a self-centering design.

Ideal for repairing damaged horn drivers while restoring the original sound quality of your speaker system.

General Features:

• Replacement Diaphragm Kit

• Fits Mackie 1701 Compression Drivers

• 44.5mm (1.75") Titanium Diaphragm

• Self-Centering Design

• Round Copper Voice Coil

• High-Efficiency Performance

• Professional Audio Replacement Part

• Easy Installation

• Precision Manufactured

• High Output Design

Specifications:

Diaphragm Specifications

• Quantity: 1 Diaphragm

• Voice Coil Diameter: 44.5 mm (1.75")

• Nominal Impedance: 8 Ohms

• Power Handling (RMS): 100 Watts

• Peak Power Handling: 800 Watts

• Sensitivity: 110 dB (1W/1m)

• Frequency Response: 600 Hz - 20 kHz

Construction

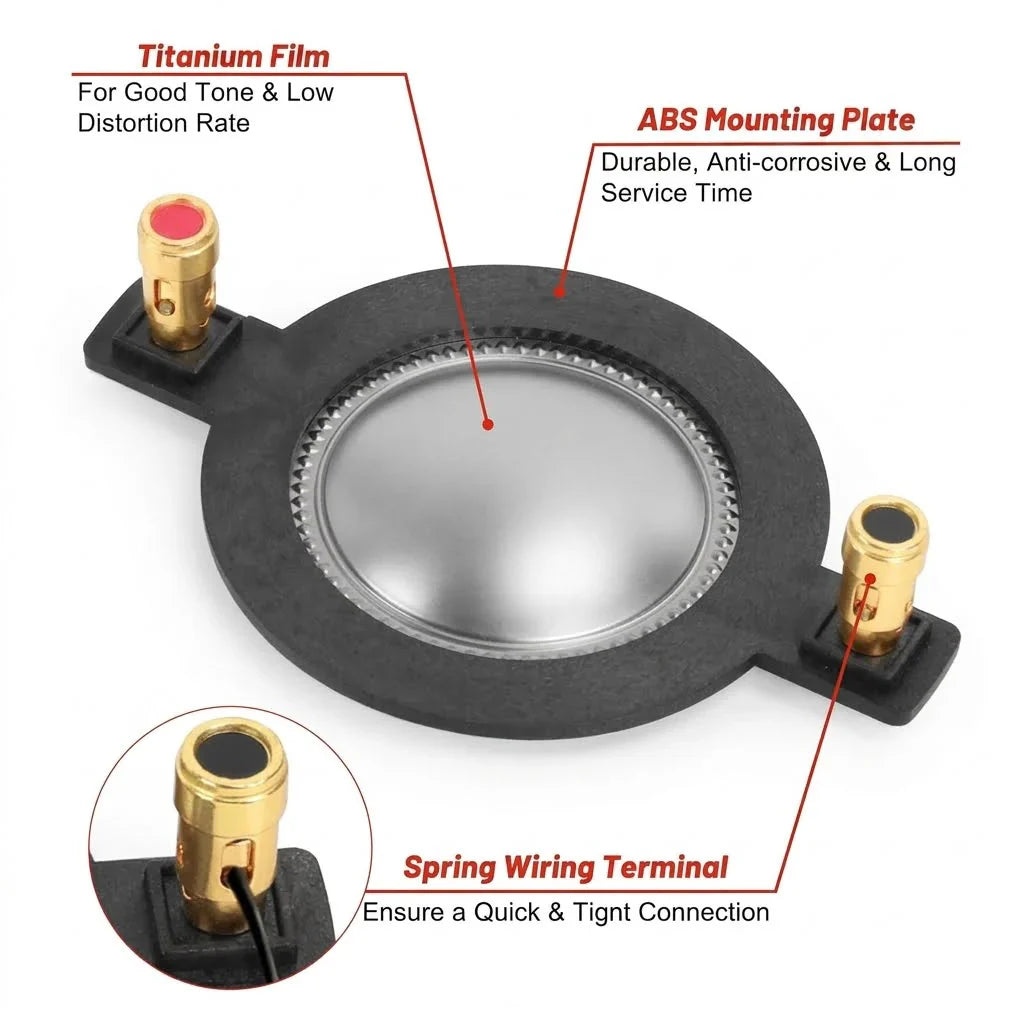

• Diaphragm Material: Titanium

• Voice Coil Material: Round Copper Wire

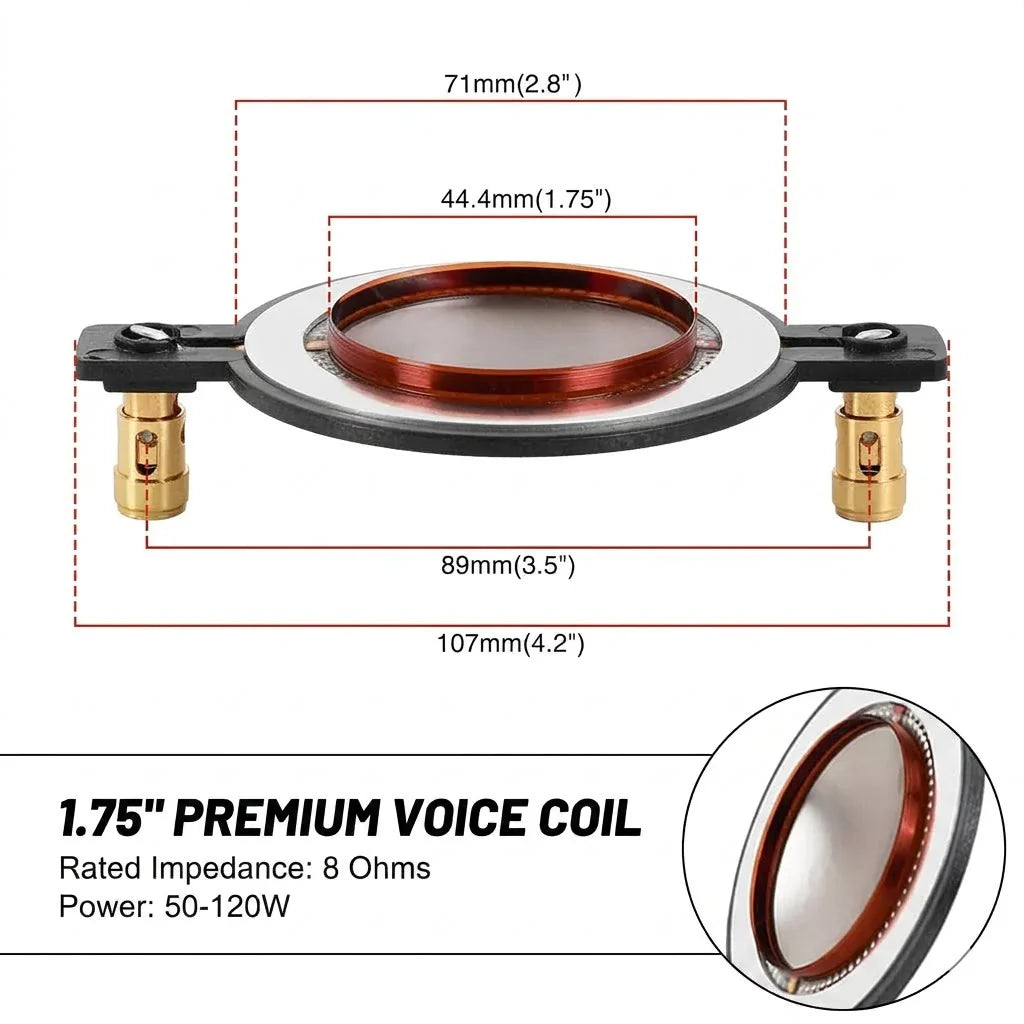

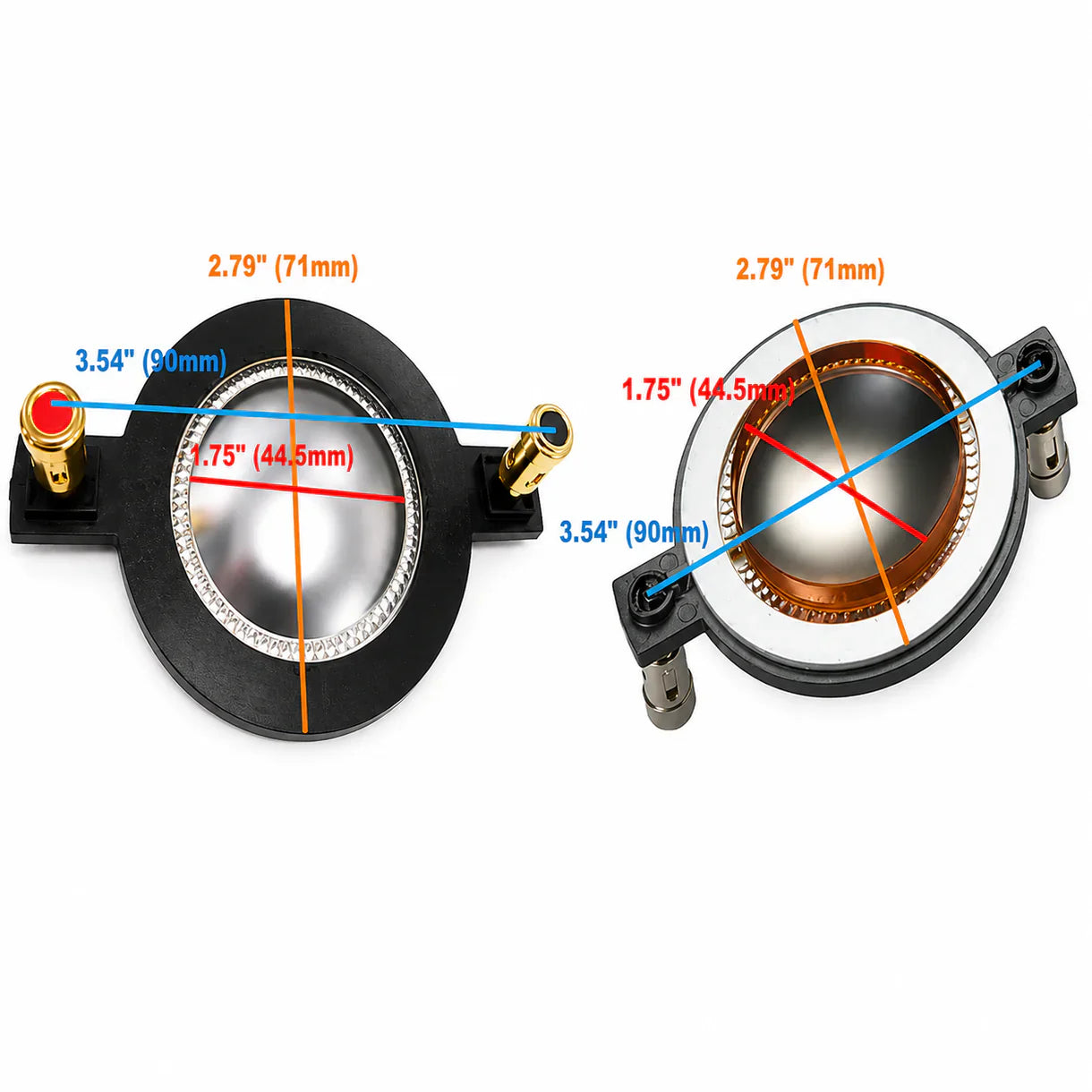

• Aluminum Outside Diameter: 71 mm (2.79")

• Dome Height: 6.8 mm (0.267")

• Mounting Center Distance: 90 mm (3.54")

Compatible Part Numbers:

Compatible with many Mackie 1701 compression drivers, including:

• 1701-8

• 17018

• CD10-1701-8

• CD10-1701

• DC10-1701

• DC10/1701-8

• DC-10-1701

• CD10/1701-8

• 0025666

• 0008093

• 77005-014

Compatible Speaker Models:

• Mackie SRM450

• Mackie SRM-450

• Mackie C300Z

• Mackie SA1521

• Mackie SR1522

• Mackie S215

• Mackie S225

• And many other models using the Mackie 1701 compression driver.

Note: Does NOT fit older-style Mackie SRM450 speakers equipped with the M44Ti horn driver.

Perfect For:

• Mackie Speaker Repairs

• Compression Driver Replacement

• PA Speaker Restoration

• Powered Speakers

• Passive Speaker Cabinets

• Live Sound Systems

• DJs

• Churches

• Recording Studios

• Sound Reinforcement

Package Includes:

• (1) 44.5mm Titanium Replacement Diaphragm

Warranty:

• 1-Year Manufacturer's Warranty
