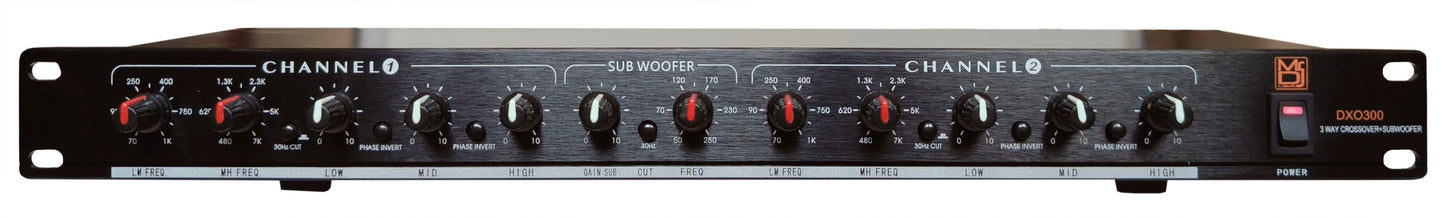

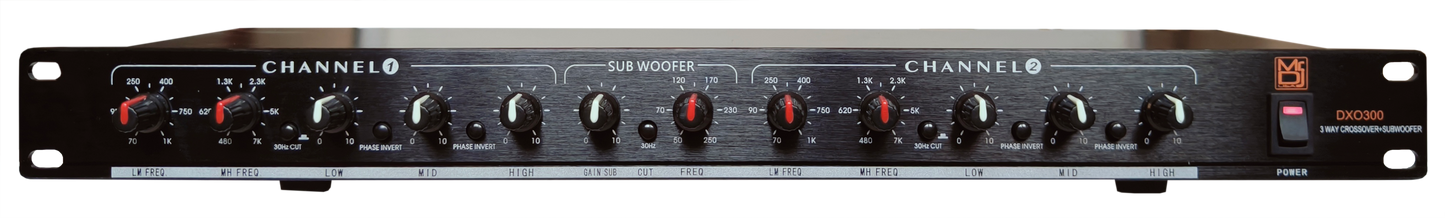

MR DJ 234XO 2/3-way Stereo, 4-way Mono Crossover

MR DJ 234XO PRO PA DJ Club Stereo 2/3-way Stereo, 4-way Mono Crossover with XLR Input & Output

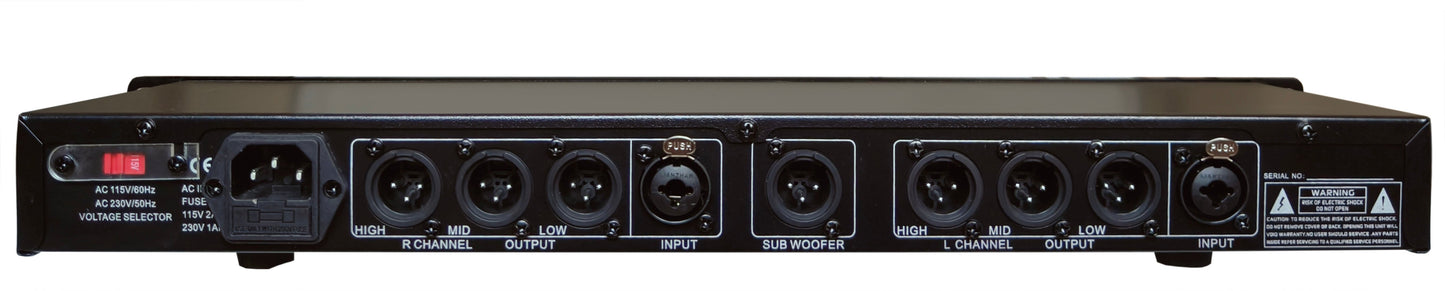

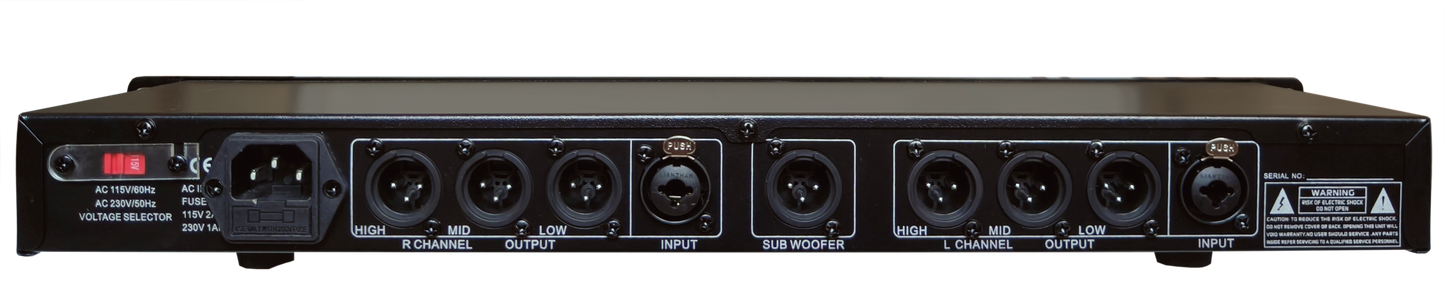

MR DJ 234XO is the perfect addition to any sound reinforcement system. Designed for live sound and fixed-install applications. The 234XO is an audio crossover. Audio crossovers are a class of electronic filters used in audio applications. Most individual loudspeaker drivers cannot cover the entire audio spectrum from low frequencies (think subwoofers) to high frequencies (think tweeters) with sufficient relative volume and lack of distortion. The inputs and outputs are both balanced XLR and 1/4" jacks. Connect your sound source to the 234XO input and output to your amplifiers to power your speakers. The controls will allow you to split your bands and send the low frequencies to your subwoofer speakers, mid-range frequencies to the horn drivers and mid-range speaker boxes, and the high frequencies to your tweeters. Properly channeling the correct frequency to the right speakers is the proper way of designing sound and speaker fields.

General Features:

• Professional 4-Way Stereo Crossover
• 2-3 way Stereo / 4-way Mono rack mountable crossover
• Low-frequency summing for subwoofer output

• 24dB/octave Linkwitz-Riley filters
• Unbalanced XLR 1/4" input jacks
• Balanced XLR outputs
• Individual-level controls on all outputs
• Phase reverse switch on all outputs

• Stereo/Mono status LEDs indicate the selected mode
• Switchable from 110V-220V
• Input Impedance: 100k Ohms
• Output Impedance: 220 Ohms
• Frequency Response: 25-25,000 Hz
• Signal-to-Noise Ratio: 80dB
• Crossover Range:
  • Subwoofer: 50-250 Hz
  • Low/High: 70-1000 Hz
  • Mid/High: 480-7000 Hz
• Weight: 4 lbs
• Shipping Weight: 5.8 lbs. (2.6 kg)
• Rack Spaces: 1U
• Dimensions: 6.9"D x 19"W x 1-3/4"H
• 1-year Manufacturer's warranty

What's in 234XO Shipping:

• 234X0 Crossover Unit
• AC Power Cord
• Owners Manual

• Four Rack Mount Screws And Washers
